深入解析 Transformer

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19

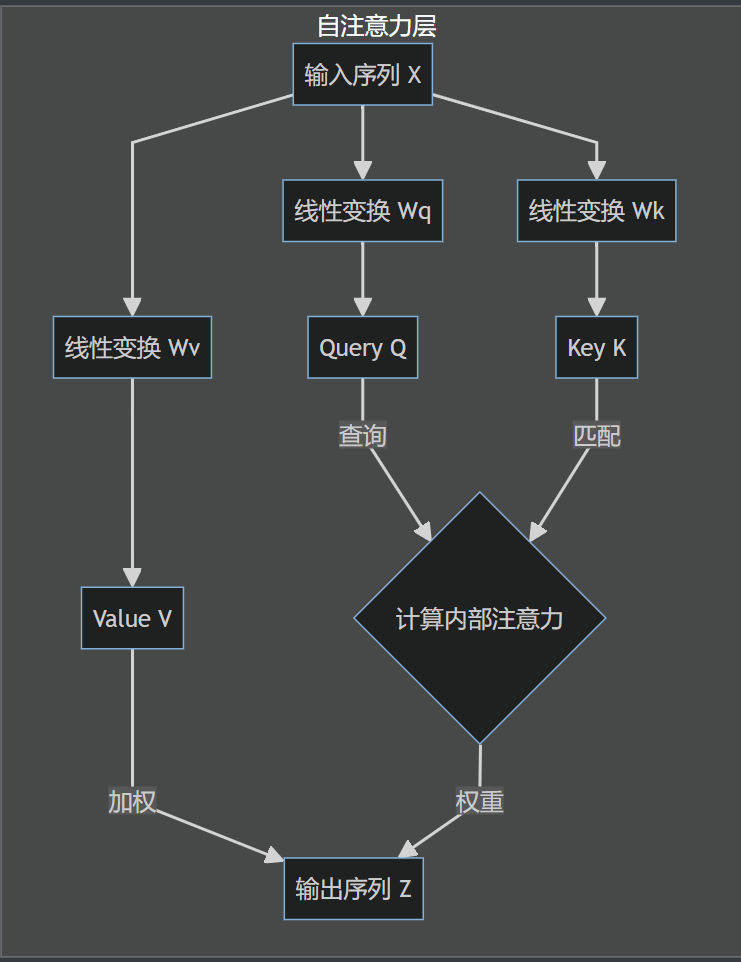

class SelfAttention(nn.Module):
    """自注意力模块"""
    def __init__(self, hidden_size):
        super(SelfAttention, self).__init__()
        self.hidden_size = hidden_size
        self.q_linear = nn.Linear(hidden_size, hidden_size)
        self.k_linear = nn.Linear(hidden_size, hidden_size)
        self.v_linear = nn.Linear(hidden_size, hidden_size)

    def forward(self, x):
        q = self.q_linear(x)
        k = self.k_linear(x)
        v = self.v_linear(x)

        scores = torch.matmul(q, k.transpose(-2, -1)) / math.sqrt(self.hidden_size)
        attention_weights = torch.softmax(scores, dim=-1)
        context = torch.matmul(attention_weights, v)

        return context

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39

class MultiHeadSelfAttention(nn.Module):
    """多头自注意力模块"""
    def __init__(self, hidden_size, num_heads):
        super(MultiHeadSelfAttention, self).__init__()
        assert hidden_size % num_heads == 0, "hidden_size 必须能被 num_heads 整除"

        self.hidden_size = hidden_size
        self.num_heads = num_heads
        self.head_dim = hidden_size // num_heads

        self.q_linear = nn.Linear(hidden_size, hidden_size)
        self.k_linear = nn.Linear(hidden_size, hidden_size)
        self.v_linear = nn.Linear(hidden_size, hidden_size)
        self.wo = nn.Linear(hidden_size, hidden_size)

    def forward(self, x):
        batch_size, seq_len, _ = x.shape

        q = self.q_linear(x)
        k = self.k_linear(x)
        v = self.v_linear(x)

        # 拆分多头
        q = q.view(batch_size, seq_len, self.num_heads, self.head_dim).transpose(1, 2)
        k = k.view(batch_size, seq_len, self.num_heads, self.head_dim).transpose(1, 2)
        v = v.view(batch_size, seq_len, self.num_heads, self.head_dim).transpose(1, 2)

        # 并行计算注意力
        scores = torch.matmul(q, k.transpose(-2, -1)) / math.sqrt(self.head_dim)
        attention_weights = torch.softmax(scores, dim=-1)
        context = torch.matmul(attention_weights, v)

        # 合并多头结果
        context = context.transpose(1, 2).contiguous().view(batch_size, seq_len, self.hidden_size)

        # 输出层
        output = self.wo(context)

        return output

1
2
3
4
5
6
7
8

code/C4/transformer/
├── src/
│   ├── transformer.py  # 核心框架：定义 Transformer、EncoderLayer 和 DecoderLayer
│   ├── attention.py    # 核心组件：多头注意力机制 (MultiHeadAttention)
│   ├── ffn.py          # 核心组件：前馈神经网络 (FeedForward)
│   ├── norm.py         # 辅助组件：层归一化 (LayerNorm)
│   └── pos.py          # 辅助组件：位置编码 (PositionalEncoding)
└── main.py             # 入口脚本：组装模型并演示前向传播

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43

# src/transformer.py
import torch.nn as nn
from .pos import PositionalEncoding  # 稍后实现
# ... 导入其他组件

class Transformer(nn.Module):
    def __init__(self, src_vocab_size, tgt_vocab_size, dim=512, n_heads=8, n_layers=6, ...):
        super().__init__()

        self.dim = dim
        # 1. 嵌入层与位置编码
        # src_embedding: 将源语言序列映射为向量 (Encoder输入)
        self.src_embedding = nn.Embedding(src_vocab_size, dim)
        # tgt_embedding: 将目标语言序列映射为向量 (Decoder输入)
        self.tgt_embedding = nn.Embedding(tgt_vocab_size, dim)
        self.pos_encoder = PositionalEncoding(dim, max_seq_len)
        self.dropout = nn.Dropout(dropout)

        # 2. 编码器与解码器堆叠
        # 使用 ModuleList 来存储层列表，支持按索引访问和自动注册参数
        self.encoder_layers = nn.ModuleList([
            EncoderLayer(dim, n_heads, hidden_dim, dropout) for _ in range(n_layers)
        ])
        self.decoder_layers = nn.ModuleList([
            DecoderLayer(dim, n_heads, hidden_dim, dropout) for _ in range(n_layers)
        ])

        # 3. 输出头
        self.output = nn.Linear(dim, tgt_vocab_size)

    def forward(self, src, tgt):
        # 1. 生成掩码 (Padding Mask & Causal Mask)
        src_mask, tgt_mask = self.generate_mask(src, tgt)

        # 2. 编码器前向传播
        enc_output = self.encode(src, src_mask)

        # 3. 解码器前向传播
        dec_output = self.decode(tgt, enc_output, src_mask, tgt_mask)

        # 4. 输出 Logits
        return self.output(dec_output)
        return logits

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35

import torch
import torch.nn as nn
import math

class PositionalEncoding(nn.Module):
    """
    正弦位置编码
    Transformer 论文中使用固定公式计算位置编码，不涉及可学习参数。
    """
    def __init__(self, dim, max_seq_len=5000):
        super().__init__()

        # 创建一个足够长的 PE 矩阵 [max_seq_len, dim]
        pe = torch.zeros(max_seq_len, dim)

        # 生成位置索引 [0, 1, ..., max_seq_len-1] -> [max_seq_len, 1]
        position = torch.arange(0, max_seq_len, dtype=torch.float).unsqueeze(1)

        # 计算分母中的 div_term: 10000^(2i/dim) = exp(2i * -log(10000)/dim)
        # 这种对数变换的计算方式在数值上更稳定
        div_term = torch.exp(torch.arange(0, dim, 2).float() * (-math.log(10000.0) / dim))

        # 填充 PE 矩阵
        # 偶数维度用 sin，奇数维度用 cos
        pe[:, 0::2] = torch.sin(position * div_term)
        pe[:, 1::2] = torch.cos(position * div_term)

        # 增加 batch 维度: [1, max_seq_len, dim] 以便广播
        pe = pe.unsqueeze(0)

        # 注册为 buffer
        # register_buffer 的作用是告诉 PyTorch：
        # 1. 'pe' 是模型状态的一部分，会随模型保存和加载 (state_dict)。
        # 2. 'pe' 不是模型参数 (Parameter)，优化器更新时不会更新它。
        self.register_buffer('pe', pe)

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17

...
class PositionalEncoding(nn.Module):
    def __init__(self, dim, max_seq_len=5000):
        ...

    def forward(self, x):
        """
        Args:
            x: 输入的词嵌入序列 [batch_size, seq_len, dim]
        Returns:
            加上位置编码后的序列 [batch_size, seq_len, dim]
        """
        # 截取与输入序列长度对应的位置编码并相加
        # x.size(1) 是 seq_len
        # self.pe 的形状是 [1, max_seq_len, dim]，切片后会自动广播到 batch_size
        x = x + self.pe[:, :x.size(1), :]
        return x

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18

if __name__ == "__main__":
    # 准备参数
    batch_size, seq_len, dim = 2, 10, 512
    max_seq_len = 100

    # 初始化模块
    pe = PositionalEncoding(dim, max_seq_len)

    # 准备输入
    x = torch.zeros(batch_size, seq_len, dim) # 输入为0，直接观察PE值

    # 前向传播
    output = pe(x)

    # 验证输出
    print("--- PositionalEncoding Test ---")
    print(f"Input shape: {x.shape}")
    print(f"Output shape: {output.shape}")

1
2
3

--- PositionalEncoding Test ---
Input shape: torch.Size([2, 10, 512])
Output shape: torch.Size([2, 10, 512])

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22

# src/attention.py
import torch
import torch.nn as nn
import math

class MultiHeadAttention(nn.Module):
    def __init__(self, dim, n_heads, dropout=0.1):
        super().__init__()
        self.dim = dim
        self.n_heads = n_heads
        self.head_dim = dim // n_heads

        # 定义 Wq, Wk, Wv 矩阵
        # 这里我们使用一个大的线性层一次性计算所有头的 Q, K, V
        self.wq = nn.Linear(dim, dim)
        self.wk = nn.Linear(dim, dim)
        self.wv = nn.Linear(dim, dim)

        # 最终输出的线性层 Wo
        self.wo = nn.Linear(dim, dim)

        self.dropout = nn.Dropout(dropout)

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68

...
class MultiHeadAttention(nn.Module):
    def __init__(self, dim, n_heads, dropout=0.1):
        ...

    def forward(self, q, k, v, mask=None):
        batch_size = q.size(0)

        # 1. 线性投影
        # [batch, seq_len, dim] -> [batch, seq_len, dim]
        q = self.wq(q)
        k = self.wk(k)
        v = self.wv(v)

        # 2. 分头 (Split Heads)
        # 变换形状: [batch, seq_len, n_heads, head_dim]
        # 然后转置: [batch, n_heads, seq_len, head_dim] 以便并行计算
        q = q.view(batch_size, -1, self.n_heads, self.head_dim).transpose(1, 2)
        k = k.view(batch_size, -1, self.n_heads, self.head_dim).transpose(1, 2)
        v = v.view(batch_size, -1, self.n_heads, self.head_dim).transpose(1, 2)

        # 3. 计算缩放点积注意力 (Scaled Dot-Product Attention)
        # scores: [batch, n_heads, seq_len, seq_len]
        scores = torch.matmul(q, k.transpose(-2, -1)) / math.sqrt(self.head_dim)

        # 4. 应用掩码 (Masking)
        if mask is not None:
            # mask == 0 的位置被填充为负无穷，Softmax 后变为 0
            scores = scores.masked_fill(mask == 0, float('-inf'))

        # 5. Softmax 与加权求和
        attn_weights = torch.softmax(scores, dim=-1)

        if self.dropout is not None:
             attn_weights = self.dropout(attn_weights)

        # context: [batch, n_heads, seq_len, head_dim]
        context = torch.matmul(attn_weights, v)

        # 6. 合并多头 (Concat Heads)
        # [batch, n_heads, seq_len, head_dim] -> [batch, seq_len, n_heads, head_dim]
        # -> [batch, seq_len, dim]
        context = context.transpose(1, 2).contiguous().view(batch_size, -1, self.dim)

        # 7. 输出层投影
        output = self.wo(context)

        return output

# 单元测试
if __name__ == "__main__":
    # 准备参数
    batch_size, seq_len, dim = 2, 10, 512
    n_heads = 8

    # 初始化模块
    mha = MultiHeadAttention(dim, n_heads)

    # 准备输入 (Query, Key, Value 相同)
    x = torch.randn(batch_size, seq_len, dim)

    # 前向传播
    output = mha(x, x, x)

    # 验证输出
    print("--- MultiHeadAttention Test ---")
    print(f"Input shape: {x.shape}")
    print(f"Output shape: {output.shape}")

1
2
3

--- MultiHeadAttention Test ---
Input shape: torch.Size([2, 10, 512])
Output shape: torch.Size([2, 10, 512])

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

# src/ffn.py
import torch.nn as nn

class FeedForward(nn.Module):
    def __init__(self, dim, hidden_dim, dropout=0.1):
        super().__init__()
        self.w1 = nn.Linear(dim, hidden_dim)  # 升维
        self.w2 = nn.Linear(hidden_dim, dim)  # 降维
        self.dropout = nn.Dropout(dropout)

    def forward(self, x):
        # 线性变换 -> ReLU -> Dropout -> 线性变换
        return self.w2(self.dropout(torch.relu(self.w1(x))))

if __name__ == "__main__":
    # 准备参数
    batch_size, seq_len, dim = 2, 10, 512
    hidden_dim = 2048

    # 初始化模块
    ffn = FeedForward(dim, hidden_dim)

    # 准备输入
    x = torch.randn(batch_size, seq_len, dim)

    # 前向传播
    output = ffn(x)

    # 验证输出
    print("--- FeedForward Test ---")
    print(f"Input shape: {x.shape}")
    print(f"Output shape: {output.shape}")

1
2
3

--- FeedForward Test ---
Input shape: torch.Size([2, 10, 512])
Output shape: torch.Size([2, 10, 512])

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48

import torch
import torch.nn as nn

class LayerNorm(nn.Module):
    """
    层归一化 (Layer Normalization)
    公式: y = (x - mean) / sqrt(var + eps) * gamma + beta
    """
    def __init__(self, dim, eps=1e-6):
        super().__init__()
        self.eps = eps
        # 可学习参数 gamma (缩放) 和 beta (偏移)
        # nn.Parameter 会被自动注册为模型参数
        self.gamma = nn.Parameter(torch.ones(dim))
        self.beta = nn.Parameter(torch.zeros(dim))

    def forward(self, x):
        # x: [batch_size, seq_len, dim]
        # 在最后一个维度 (dim) 上计算均值和方差
        # keepdim=True 保持维度以便进行广播计算
        mean = x.mean(-1, keepdim=True)
        # unbiased=False 使用有偏估计 (分母为 N)，与 PyTorch 默认行为一致
        var = x.var(-1, keepdim=True, unbiased=False)

        # 归一化
        x_norm = (x - mean) / torch.sqrt(var + self.eps)

        # 缩放和平移
        return self.gamma * x_norm + self.beta

# 单元测试
if __name__ == "__main__":
    # 准备参数
    batch_size, seq_len, dim = 2, 10, 512

    # 初始化模块
    ln = LayerNorm(dim)

    # 准备输入
    x = torch.randn(batch_size, seq_len, dim)

    # 前向传播
    output = ln(x)

    # 验证输出
    print("--- LayerNorm Test ---")
    print(f"Input shape: {x.shape}")
    print(f"Output shape: {output.shape}")

1
2
3

--- LayerNorm Test ---
Input shape: torch.Size([2, 10, 512])
Output shape: torch.Size([2, 10, 512])

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33

import torch
import torch.nn as nn
import math
# 导入组件
from .attention import MultiHeadAttention
from .ffn import FeedForward
from .norm import LayerNorm
from .pos import PositionalEncoding

class EncoderLayer(nn.Module):
    def __init__(self, dim, n_heads, hidden_dim, dropout=0.1):
        super().__init__()
        # 多头自注意力子层
        self.attention = MultiHeadAttention(dim, n_heads, dropout)
        self.attention_norm = LayerNorm(dim)
        # 前馈网络子层
        self.feed_forward = FeedForward(dim, hidden_dim, dropout)
        self.ffn_norm = LayerNorm(dim)

        self.dropout = nn.Dropout(dropout)

    def forward(self, x, mask=None):
        # 子层 1：自注意力
        _x = x
        x = self.attention(x, x, x, mask)  # Q=K=V=x
        x = self.attention_norm(_x + self.dropout(x))

        # 子层 2：前馈网络
        _x = x
        x = self.feed_forward(x)
        x = self.ffn_norm(_x + self.dropout(x))

        return x

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

class DecoderLayer(nn.Module):
    def __init__(self, dim, n_heads, hidden_dim, dropout=0.1):
        super().__init__()
        # 1. 带掩码的自注意力
        self.self_attention = MultiHeadAttention(dim, n_heads, dropout)
        self.self_attn_norm = LayerNorm(dim)
        # 2. 交叉注意力
        self.cross_attention = MultiHeadAttention(dim, n_heads, dropout)
        self.cross_attn_norm = LayerNorm(dim)
        # 3. 前馈网络
        self.feed_forward = FeedForward(dim, hidden_dim, dropout)
        self.ffn_norm = LayerNorm(dim)

        self.dropout = nn.Dropout(dropout)

    def forward(self, x, enc_output, src_mask, tgt_mask):
        # 子层 1：带掩码的自注意力
        _x = x
        x = self.self_attention(x, x, x, tgt_mask)
        x = self.self_attn_norm(_x + self.dropout(x))

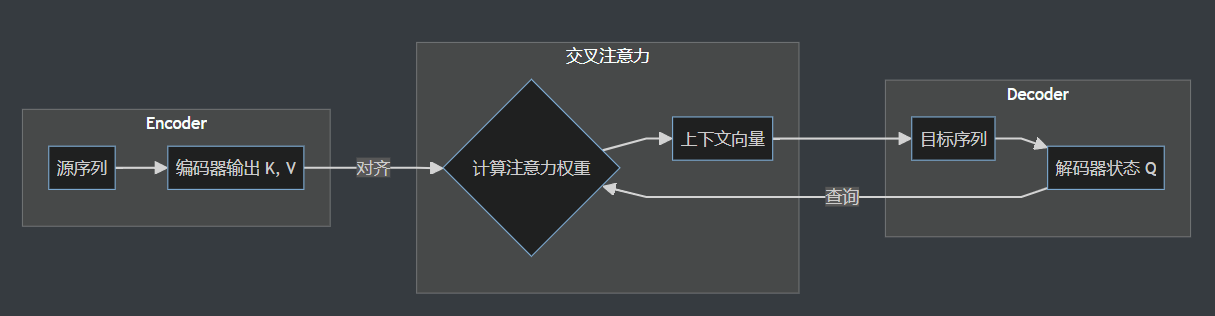

        # 子层 2：交叉注意力（Q 来自解码器，K/V 来自编码器输出）
        _x = x
        x = self.cross_attention(x, enc_output, enc_output, src_mask)
        x = self.cross_attn_norm(_x + self.dropout(x))

        # 子层 3：前馈网络
        _x = x
        x = self.feed_forward(x)
        x = self.ffn_norm(_x + self.dropout(x))

        return x

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48

class Transformer(nn.Module):
    def __init__(self,
                 src_vocab_size,
                 tgt_vocab_size,
                 dim=512,
                 n_heads=8,
                 n_layers=6,
                 hidden_dim=2048,
                 max_seq_len=5000,
                 dropout=0.1):
        # ... 初始化嵌入层、位置编码、编码器/解码器堆叠以及输出层等 ...
        self._init_parameters()

    def _init_parameters(self):
        for p in self.parameters():
            if p.dim() > 1:
                nn.init.xavier_uniform_(p)

    def generate_mask(self, src, tgt):
        # src_mask: [batch, 1, 1, src_len]，pad token 假设为 0
        src_mask = (src != 0).unsqueeze(1).unsqueeze(2)

        # tgt_mask: [batch, 1, tgt_len, tgt_len]，结合 pad mask 和 causal mask
        tgt_len = tgt.size(1)
        tgt_pad_mask = (tgt != 0).unsqueeze(1).unsqueeze(2)  # [batch, 1, 1, tgt_len]
        tgt_subsequent_mask = torch.tril(torch.ones((tgt_len, tgt_len), device=tgt.device)).bool()
        tgt_mask = tgt_pad_mask & tgt_subsequent_mask.unsqueeze(0)
        return src_mask, tgt_mask

    def encode(self, src, src_mask):
        x = self.src_embedding(src) * math.sqrt(self.dim)
        x = self.pos_encoder(x)
        x = self.dropout(x)
        for layer in self.encoder_layers:
            x = layer(x, src_mask)
        return x

    def decode(self, tgt, enc_output, src_mask, tgt_mask):
        x = self.tgt_embedding(tgt) * math.sqrt(self.dim)
        x = self.pos_encoder(x)
        x = self.dropout(x)
        for layer in self.decoder_layers:
            x = layer(x, enc_output, src_mask, tgt_mask)
        return x

    # 前向传播
    def forward(self, src, tgt):
        ...

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50

import torch
from src.transformer import Transformer

def main():
    # 超参数
    src_vocab_size = 100
    tgt_vocab_size = 100
    dim = 512
    n_heads = 8
    n_layers = 6
    hidden_dim = 2048
    max_seq_len = 50
    dropout = 0.1

    # 实例化模型
    model = Transformer(
        src_vocab_size,
        tgt_vocab_size,
        dim,
        n_heads,
        n_layers,
        hidden_dim,
        max_seq_len,
        dropout
    )

    # 模拟输入数据
    batch_size = 2
    src_len = 10
    tgt_len = 12

    # 随机生成 src 和 tgt 序列 (假设 pad_token_id=0)
    # 确保没有 pad token 影响简单测试，或者手动插入
    src = torch.randint(1, src_vocab_size, (batch_size, src_len))
    tgt = torch.randint(1, tgt_vocab_size, (batch_size, tgt_len))

    # 前向传播
    output = model(src, tgt)

    print("Model Architecture:")
    # print(model)
    print("\nTest Input:")
    print(f"Source Shape: {src.shape}")
    print(f"Target Shape: {tgt.shape}")

    print("\nModel Output:")
    print(f"Output Shape: {output.shape}") # 预期 [batch_size, tgt_len, tgt_vocab_size]

if __name__ == "__main__":
    main()

1
2
3
4
5
6
7
8

Model Architecture:

Test Input:
Source Shape: torch.Size([2, 10])
Target Shape: torch.Size([2, 12])

Model Output:
Output Shape: torch.Size([2, 12, 100])
